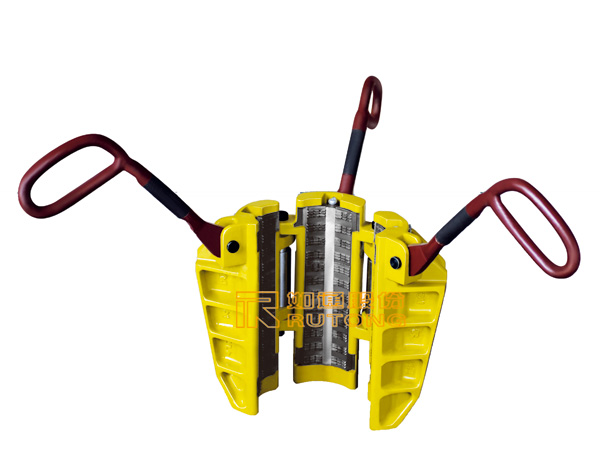

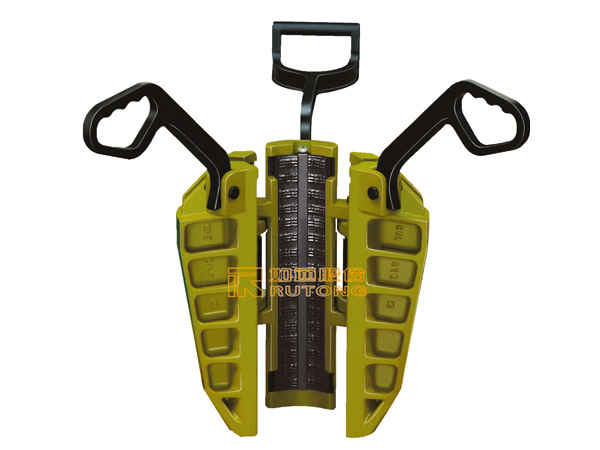

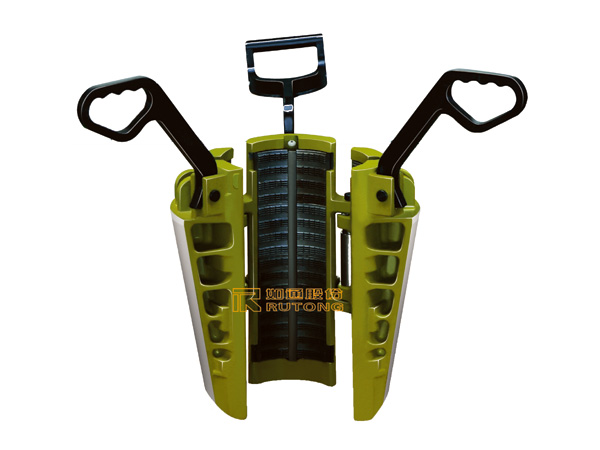

Drill Pipe Slips Type DU

The drill pipe slip type DU is a kind of traditional product favoured by some oilmen. According to the contact length between insert and pipe, as well as the contact length between back cone and insert bowl, this range of pipe seizing equipment can be classified into DU series, DUL series and SDU series. The DU series can be used at the well with the maximum depth of 8,000ft. For clamping heavy drill pipe, the DUL series drill pipe slip is a good choice for you. Since the contact area of the back cone of SDU series is larger, the strength of the oil exploitation tool is higher.

The back of the insert is designed in arch shape, which makes for easy and fast installation. Moreover, better centring and fastening effect can be obtained. With the same slip body, the insert of the drill pipe slip can be replaced for application on different pipes.

Technical Parameters

Model	Size of Slip Body	41/2
DU	Drill Pipe Dia.		in.		23/8		27/8		31/2	4	41/2
			mm		60.3		73.0		88.9	101.6	114.3
DUL	Drill Pipe Dia.		in.		23/8		27/8		31/2	4	41/2
			mm		60.3		73.0		88.9	101.6	114.3
SUD	Drill Pipe Dia.		in.		—		—		—	—	—
			mm		—		—		—	—	—
Model	Size of Slip Body		51/2
DU	Drill Pipe Dia.		in.		31/2		4		41/2	5	51/2
			mm		88.9		101.6		114.3	127	139.7
DUL	Drill Pipe Dia.		in.		31/2		4		41/2	5	51/2
			mm		88.9		101.6		114.3	127	139.7
SDU	Drill Pipe Dia.		in.		31/2		4		41/2	5	51/2
			mm		88.9		101.6		114.3	127	139.7
Model	Size of Slip Body		7
DU	Drill Pipe Dia.		in.		41/2		5		51/2	65/8	7
			mm		114.3		127		139.7	168.3	177.8
DUL	Drill Pipe Dia.		in.		—		—		—	—	—
			mm		—		—		—	—	—
SDU	Drill Pipe Dia.		in.		41/2		5		51/2	65/8	7
			mm		114.3		127		139.7	168.3	177.8
