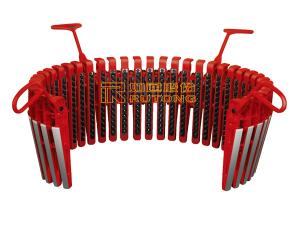

Casing Slips Type CMS

With multiple slip segments, the casing slip type CMS is provided with standard 1:3 taper or nonstandard 1:4 taper. Perfectly matching with API standard bushing, insert bowl, and specified spider and insert bowl, this product can be used to grip casing with outer diameter from 4-1/2" to 42" by increasing or decreasing the slip segments, or by the quantity of circular button. Currently, our company can offer the casing gripping tool in two types, CMS-XL and UC-3, the parts and component of whose can be interchanged with that of internationally famous brand.

Widely used in the international market, this casing slip is a useful tool for running casing. The product of CMS-XL series can be used to grip casing in the diameter from 4.1/2" to 30"(114.3-762mm). As the circular button is provided with button strip, the reliability, safety and the contact strength between the slip and the casing are improved. Moreover, the contact area is reasonably controlled to reduce the abrasion of the casing.

Technical Parameters

Casing outer diameter	in	4 1/2 -5	5 1/2 -6	6 5/8	7	7 5/8	8 5/8	9 5/8	10 3/4
	mm	114.3-127	139.7-152.4	168.3	177.8	193.7	219.1	244.5	273.1
Weight	kg	76	71	89	83.5	75	82	87	95
	lb	168	157	196	184	166	181	192	209
Qty. of Segments		9	9	12	12	12	13	14	15
Configured Insert Bowls No.		API or No.3						No.2
Casing outer diameter	in	11 3/4	13 3/8	16	18 5/8	20	24	26	30
	mm	298.5	339.7	406.4	473.1	508	609.6	660.4	762
Weight	kg	118	117	140	166.5	174	201	220	248
	lb	260	258	308	367	383	443	486	546
Qty. of Segments		17	18	21	25	26	30	33	37
Configured Insert Bowls No.		No.1		Matched with relevant casing bushing
