PS Series Pneumatic Slips

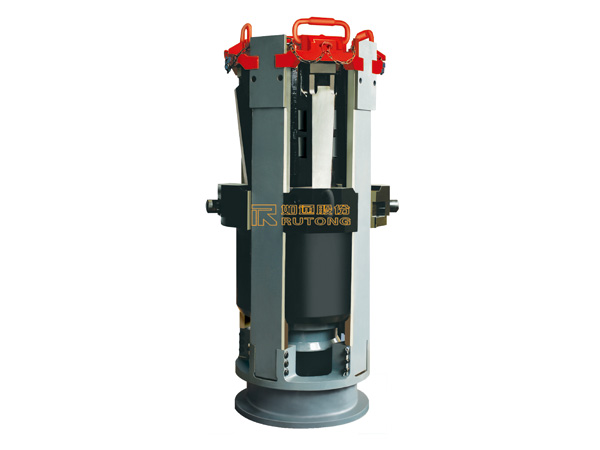

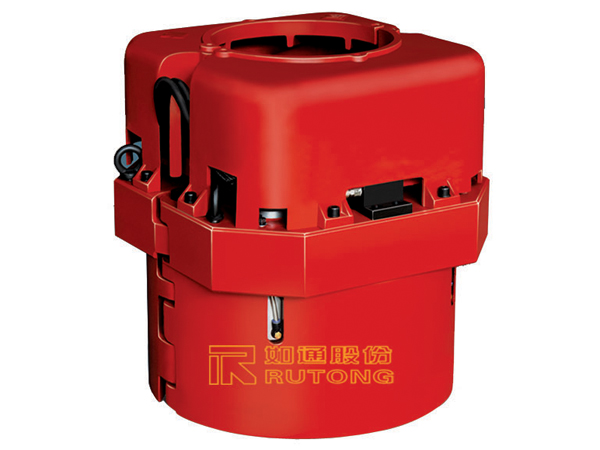

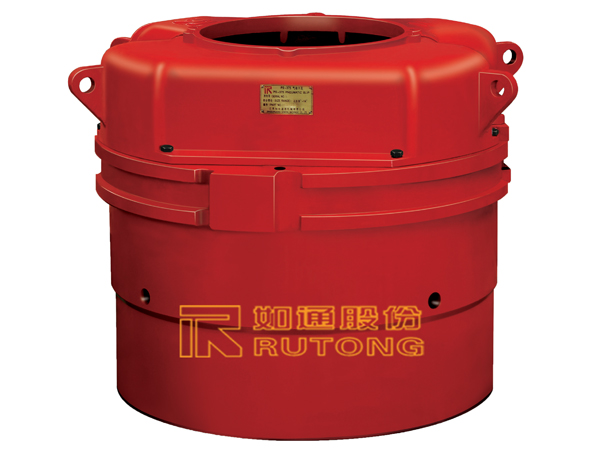

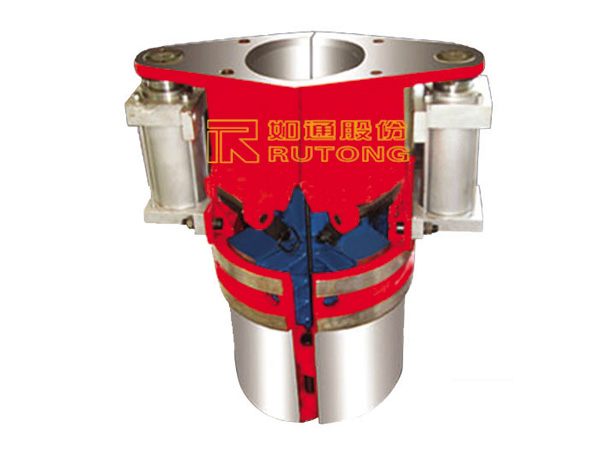

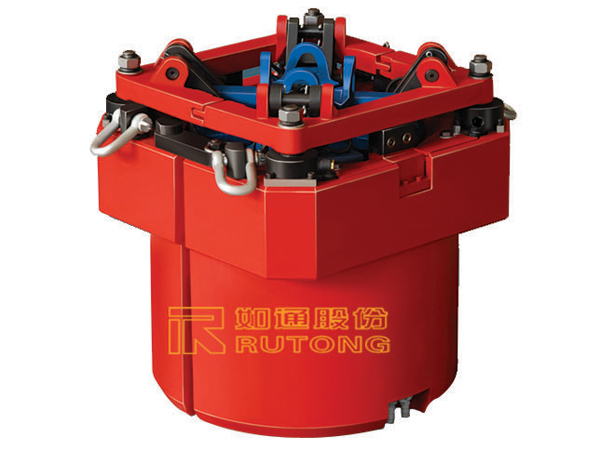

  • PS16
  • PS560

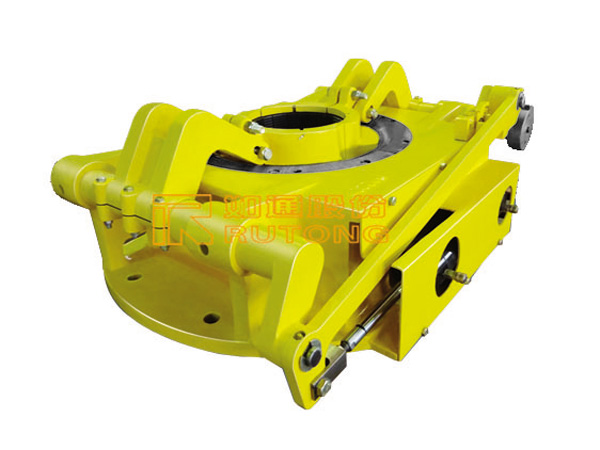

  • PS Slant Hole
  • PS175
  • PS275
  • PS375

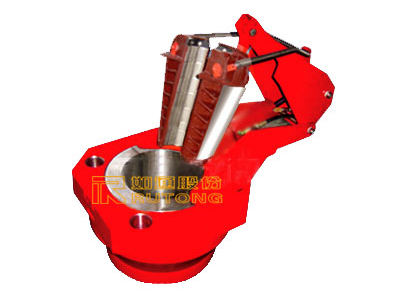

  • PS Portable
inquiry form

The PS series pneumatic slips are driven by air, simplifying operating mode, increasing hoisting strength and reducing labor intensity. It is a kind of air-operated tool used for raising and lowering drill pipe, holding casing, tubing and some other pipes. Suitable for the turntable of various kinds of drilling machines, the maximum load of the pneumatic clamp differs from 100t to 500t. Provided for pipes with different diameters, this pneumatic slip can meet your requirement for clamping pipes to the greatest extent.

Technical Parameters

Model Rotary Table Size(in) Applicable Diameter
of Tubulars 		Rated Capacity
(short tons)		 Work Pressure
(MPa) 		Max. Pressure
(MPa)
PS175 171/2 23/8-53/4 150 0.6-0.8 1
PS205 201/2 23/8-53/4 250 0.6-0.8 1
PS275 271/2 23/8-97/8 350 0.6-0.8 1
PS375 371/2 23/8-14 500 0.6-0.8 1
PS16 271/2 . 371/2 .491/2 31/2-73/4 500 0.6-0.8 1
PS Portable 23in. 271/2 . 371/2 .491/2 Pin Drive 23/8-51/2 250 3
50 		0.6-0.8 1
PS Slant Hole For Slant Hole Drilling Rig 27/8-133/8 250 0.6-0.8 1
PS 560 560mm through hole 1.9-7 350 0.6-0.8 1
