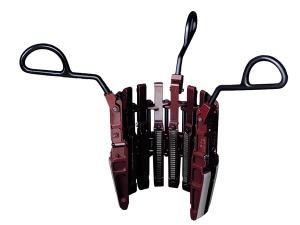

Drill Collar Slips Type A
Compatible with operating habit of some oilmen, type A drill collar slips are widely used in North America and South America. Made of multiple slip segments, this oilfield clamping slip can be applied on drill collar that is worn. Manufactured according to API Spec 7K standard, this device features light weight, wide applications and firm gripping capacity. The installation and using of the drill collar slip is quite convenient. The utilization on different casing can be realized through increasing or reducing the slip body of the well drilling apparatus.
Technical Parameters
| Type | A | |||||||
| Outer Dia of Drill Collar | in. | 3- 41/2 | 31/4- 43/4 | 41/4- 53/4 | 51/2- 7 | 63/4- 81/4 | 81/4- 10 | 10- 113/4 |
| mm | 76.2- 114.3 | 82.55- 120.65 | 107.95- 146.05 | 139.7- 177.8 | 171.5- 209.55 | 209.55- 254 | 254- 298.45 | |
| Configured Insert Bowls No. | API or No.3 | No.2 | ||||||
