Home » Products » Hoisting Tools » Hook Blocks

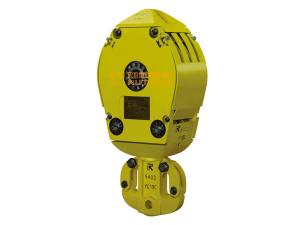

Hook Blocks

The hook block is one of the hoisting equipment for hanging and lifting drill string, replacing drill and running casing. Additionally, if the drill is slightly jammed, or encounter obstruction, this casing running device can also be used for trouble shooting. The hook block is designed and manufactured according to API Spec 8C standard. So the performance of the product is reliable.

Technical Parameters

Model	YG100	YG150	YG170	YG250
Rated Load (kN)	890	1350	1700	2250
Quantity and Diameter of Pulley (mm)	3/609.6	4/915	5/915	5/915
Type of Hook Body	Three hooks	Three hooks	Three hooks	Three hooks
Diameter of Wire Rope (mm)	25.4	26/29	29	32
Opening Size (mm)	_	165	180	190
Stroke of Spring (mm)	_	180	180	180
Overall Dimensions (mm)	1685×675×510	3195×960×616	3307×960×616	3450×970×850
Weight(kg)	1010	3590	4585	4732
