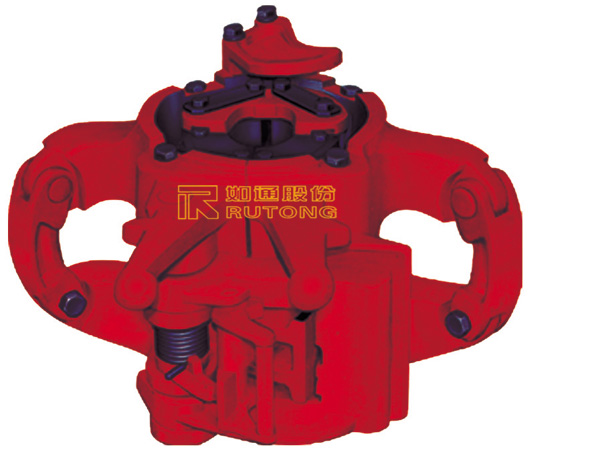

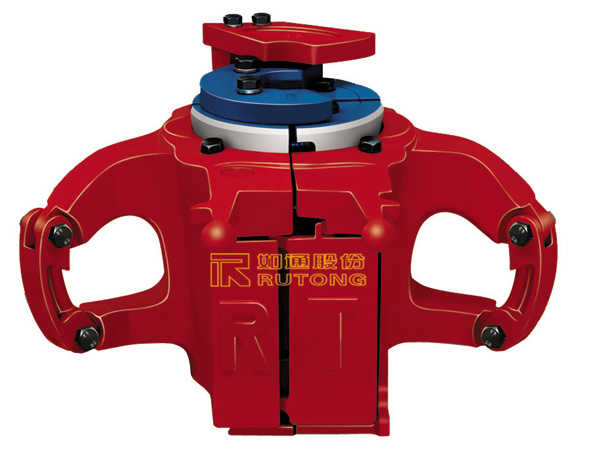

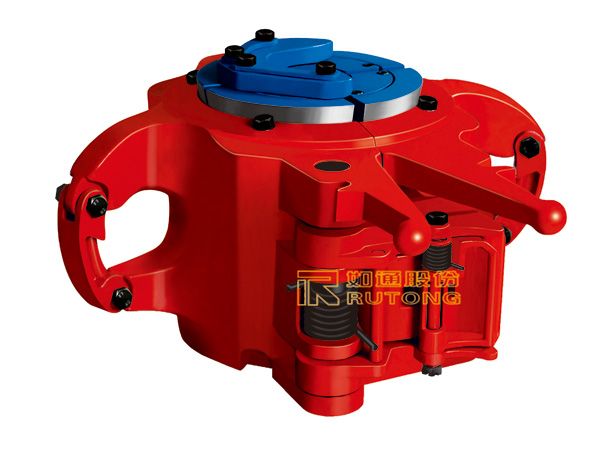

Y Series Slip Type Elevators

inquiry form

According to API Spec 8C Standard on Hoisting Equipment for Drilling and Oil Extraction, the Y series slip type elevator is produced with reliable quality. This slip elevating device can be used for gripping and hoisting drill pipe, casing and tubing. Specially, application for lifting tubing with integrated joint, casing without coupling and pipe for electric submersible pump is also available with y series slips type elevator.

Technical Parameters

Model Applicable Pipe Dia. Rated Load
mm (in.) kN Short Ton
HYT 60.3-88.9 (2 3/8 -3 1/2) 1350 150
YT 33.4-88.9 (1.315-3 1/2) 675 75
MYT 33.4-73 (1.315-2 7/8) 360 40
LYT 26.7-52.4 (1.05-1 1/16) 180 20
HYC 88.9-139.7 (3 1/2 -7 5/8) 1800 200
MYC 88.9-117.8 (3 1/2 -7) 1125 125
YC 88.9-117.8 (3 1/2 -7) 675 75
