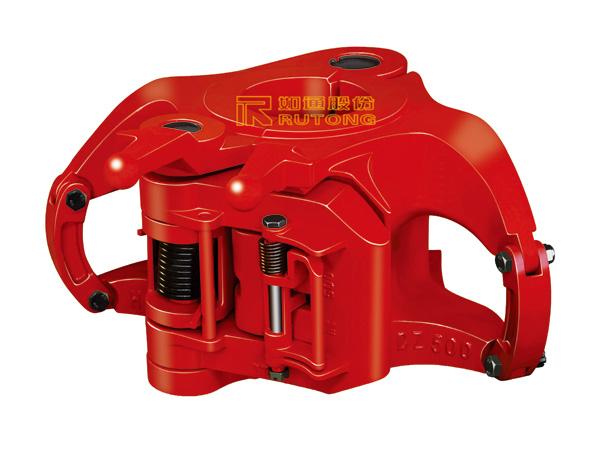

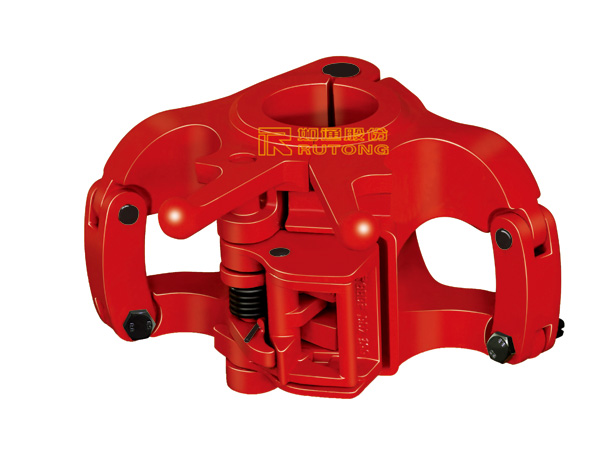

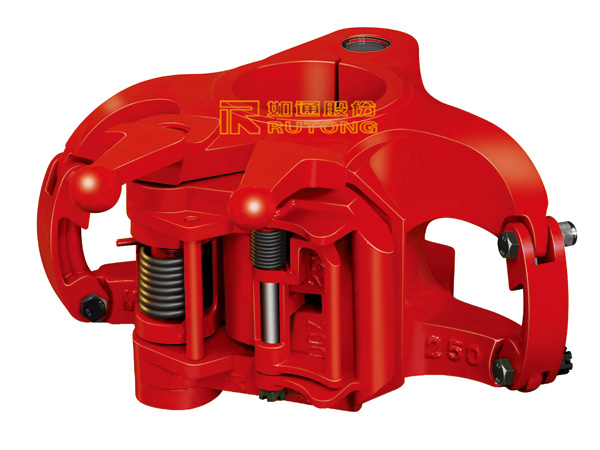

Elevators Type DDZ

The elevators type DDZ can be used to hoisting tapered drill pipe and drilling tools. With centre latch, the loading capacity of the pipe lifting tool ranges from 100t to 750t. The clamping size varies from 2³/8 to 6⁵/8in. The production conforms to API Spec 8C Standard on Hoisting Equipment for Drilling and Oil Extraction.

Technical Parameters

Model	Pipe Dia.(in.)	Rated Load (Short tons)	Remark
DDZ/100	23/8-5	100	MG
DDZ/150	23/8-51/2	150	RG
DDZ/250	23/8-51/2	250	MGG
DDZ/350	31/2-57/8	350	GG
DDZ/350TD	31/2-57/8	350	Integrated type with bushings
DDZ/500	31/2-65/8	500	HGG
DDZ/500TD	31/2-65/8	500	Integrated type with bushings
DDZ/750	4-65/8	750
