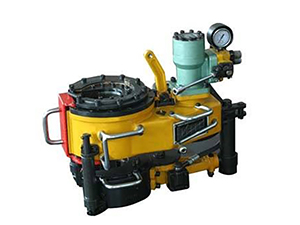

Tubing Power Tongs
Tubing power tongs adopts an inner cam and rolling-up clamping mechanism and a backup tong. It is ideal for making up and breaking out tubing, small casing pipe and small drill pipe in oil and gas industry. The extension guide pole is optional for the backup tong to clamp the tubing body. Besides, a torque control system is also available.
Technical Parameters
Model | XQ89/3YC | XQ114/6YB | XQ140/12Y | XQ140/20 | |
Applicable pipe diameter of master tong | mm | 60-89 | 60-114 | 73-140 | 42-140 |
in | 23/8-31/2 | 23/8-41/2 | 27/8-51/2 | 166-51/2 | |
Applicable pipe diameter of backup tong | mm | 60-114 | 73-141.5 | 89-156 | 60-153.7 |
in | 23/8-41/2 | 27/8-51/8 | 31/2-61/8 | 23/8-6.05 | |
Max torque | N.m | 3300 | 6000 | 12000 | 20000 |
ft.lbf | 2213 | 4425 | 8850 | 15000 | |
Speed | rpm | 30-90 | 20-85 | 14-72 | 13.5-58 |
Related pressure | Mpa | 10 | 11 | 12 | 17.5 |
psi | 1450 | 1595 | 1740 | 2500 | |
Max flow | L/min | 80 | 100 | 120 | 140 |
pu | 1450 | 1595 | 1740 | 2500 | |
Overall dimension | mm | 650*430*550 | 750*500*600 | 1024*582*539 | 1115*962*1665 |
in | 25.6*16.9*21.7 | 29.5*19.7*23.6 | 40.3*22.9*21.2 | 44*38*65.3 | |
Weight(including backup tong) | kg | 158 | 220 | 480 | 840 |
lb | 348 | 485 | 1060 | 1840 |
