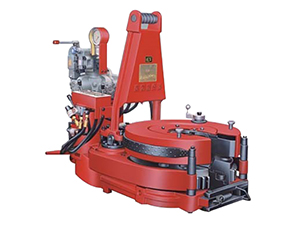

Drill Pipe Power Tongs
Drill pipe power tong is an ideal wellhead tool for oil drilling, which is widely applied for making-up and breaking-out tubular pipes and thread connections in offshore, onshore drilling operations and workover operations. This power tong offers safety, labor-saving and improved working efficiency. The open-throat design allows the tongs to escape from the drilling pipe freely, with high mobility. This product is a combination of spinning wrench and torque tong, replacing the cathead, manual tong and rotary rope in making-up and breaking-out operation.
Technical Parameters
Model | ZQ127-25 | ZQ162-50 | ZQ203-100 | ZQ203-125 | ||
Applicable pipe diameter | Drill pipe | mm | 65-127 | 85-162 | 114-203 | 114-203 |
in | 23/8〞~31/2〞 | 23/8〞~5〞 | 27/8〞~8〞 | 27/8〞~8〞 | ||
Casing | mm | 65-127 | 114.3~153.7 | |||
in | 23/8〞~31/2〞 | 41/2〞~51/2〞 | ||||
Oil pipe | mm | 65-127 | 138-156 | |||
in | 23/8〞~31/2〞 | 31/2〞~41/2〞 | ||||
Max. torque | kN.m | 25 | 50 | 100 | 125 | |
ft.lbf | 18440 | 36880 | 73750 | 92200 | ||
Rated speed (high gear) | rpm | 65 | 60 | 40 | 40 | |
Speed (low gear) | rpm | 10.5 | 4.1 | 2.7 | 2.7 | |
Air pressure | MPa | 0.5–0.9 | ||||
psi | 72–130 | |||||
Rated pressure | MPa | 12 | 14 | 16.6 | 20.7 | |
psi | 1740 | 2030 | 2400 | 3000 | ||
Rated flow | L/min | 120 | 120 | 114 | 114 | |
gpm | 31.7 | 31.7 | 30 | 30 | ||
Stroke of shifting cylinder | mm | 1000 | 1000 | 1500 | 1500 | |
in | 39.4 | 39.4 | 59 | 59 | ||
Overall dimension | mm | 1110×735× 815 | 1570×800×1190 | 1760×1000×1360 | 1760×1080×1360 | |
in | 44×31×32 | 62×31×47 | 69×39×53 | 69×40.5×53 | ||
Weight | kg | 620 | 1500 | 2400 | 2650 | |
lb | 1360 | 3310 | 5290 | 5840 |
