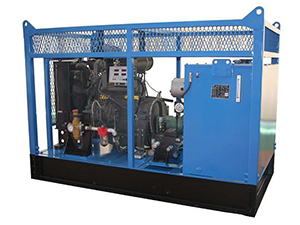

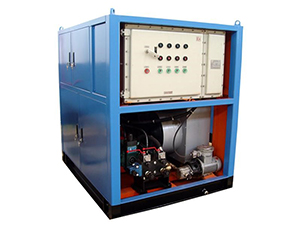

Hydraulic Power Units

Hydraulic power units are designed to supply hydraulic power for offshore and onshore drilling machinery. This product features a wide range of adjustment, convenient adjustment and great versatility. The air-cooled hydraulic power unit is especially applicable to high-temperature and continuous operation conditions, featuring compact structure, wide adjustment, good heat dissipation and heating function, etc. RUTONG offers both electric and diesel hydraulic power units and simply determine if diesel or electric fits your project when making your selection.

Technical Parameters

Model		YZB-120	FYZB-120	FYZB-120LD	YD160	FYD160	FYZB-190
Rated flow	L/min	Max. 120	114	80/120(ma.)	160	160	190
	gpm	Max. 31.7	30	21/31.7	42.3	42.3	50
Rated pressure	Mpa	16.6	16.6	/	16.6	16.6	16.6
	psi	2400	2400	/	2400	2400	2400
Max. pressure	Mpa	20	20	21.5/14	20	20	20
	psi	2900	2900	3120/2030	2900	2900	2900
Drive power	kW	37	37	37	37	37	37
	Hp	49.6	49.6	49.6	49.6	49.6	49.6
Cooling method			Air cooled	Air cooled		Air cooled	Air cooled
Overall dimension	mm	1720*1090*1255	1720*1300*1785	1650*1300*1650	1720*1090*1255	1530*745*955	1865*9800*1880
	in	68*43*49	68*51*70	65*51*65	68*43*49	60*29*38	73*384*74
Weight	kg	1300	1500	1800	1300	1500	1800
	Lb	2866	3307	3960	2866	3307	3968

Technical Parameters

Model		YZC-120E	YZC-120A	YZC1F-265H	YZBCF-120LD/ 2
Rated flow	L/min	114	120	272 (max)	120
	gpm	30	31.7	72 (max)	31.7
Rated pressure	MPa	16.6	18		20
	psi	2400	2610		2900
Max pressure	MPa	20	20	17.5	20
	psi	2900	2900	2540	2900
Diesel engine power	kw	60	70	68	70.37 (motor power)
	hp	80.5	93.3	91	93.8/49.6 (electric motor power)
Diesel engine starting mode		Electric starting	Air starting
Cooling method		/	/	/	Air cooled
Overall dimension	mm	2450*1300*1725	2450*1300*1725	2350*1450*2000	3800*2300*2400
	in	97*51*68	97*51*68	92.5*57*79	150*91*95
Weight	kg	2450	2450	2150	2300
	lb	2866	2866	4740	5070
