NJ-S Series Manual Tubing/Casing Hydraulic Bucking Unit
inquiry form

NJ-S Series Manual Tubing/Casing Hydraulic Bucking Unit

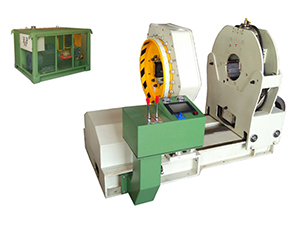

NJ-S series manual casing/tubing hydraulic bucking unit features compact structure and easy operation, applicable to the repair of tubing or non-automatic production line equipment in tubing plant. NKY-C8S torque control system is supplied to display the make-up torque and process graph during the bucking process. When torque up to the preset value, the pipe will be automatically released. This never sticks the coupling and prevents the teeth from damaging the pipe body and coupling cause by over-torque.

Features

  • Manual multi - way hydraulic reverse valve is adopted for simple structure and convenient operation.
  • Integrated 8’’ touch screen displays English menu for easy operation and affordability.
  • Torque control system can be equipped to display real-time make-up process graph and torque values.
  • The bucking parameters can be set, like pipe and coupling parameters, the max/min torque, shouldering torque and turns.
  • The bucking unit will alarm automatically when the make-up torque reaches the set value.
  • Equipped with a fast dump valve for automatic control of make-up torque.
  • Measuring, controlling and recording of torque are available. These records can be stored on the disk for future reference.
  • The torque graph and daily report during the bucking process can be printed.

Technical Parameter

    1. Power supply: 24V DC
    2. Max. power consumption: 30VA
    3. Max. torque: 100kN·m (Torque range can be set)
    4. Working torque range: can be set
    5. Alarm torque range: can be set
    1. Measure accuracy: ≤0.5％
    2. Control accuracy: ≤1.5％
    3. Working temperature: -15°C to +65°C
    4. Working RH: 10% to 80% RH (no condensing)

Technical parameters

Model NJ73-S3 NJ120-S6 NJ178-S20 NJ180-S35 NJ273-S40 NJ340-S50
Applicable pipe diameter Φ25.4～73
1″～2⅞″		 Φ60～114
23/8″～41/2″		 Φ60～177.8
2⅜″～7″		 Φ60～177.8
2⅜″～7″		 Φ140～273
5″～10¾″		 Φ177.8～339.7
7″～13⅜″
Rated torque (high gear) 1100N·m
810 ft-lbs		 2500 N·m
1840 ft-lbs		 10000 N·m
7370ft-lbs		 18000 N·m
13270 ft-lbs		 20000 N·m
14750ft-lbs		 23000 N·m
16960 ft-lbs
Rated torque (low gear) 3500 N·m
2580 ft-lbs		 6000 N·m
4420 ft-lbs		 20000 N·m
14750 ft-lbs		 35000 N·m
25810 ft-lbs		 40000 N·m
29500 ft-lbs		 50000 N·m
36870 ft-lbs
Rated speed 80 r/min 32 r/min 28 r/min 24 r/min 25 r/min 23 r/min
Rated speed (low gear) 32 r/min 15 r/min 12 r/min 12 r/min 10 r/min 10 r/min
Rated working pressure 16 MPa
2320 psi
Max. flow 56 L/min
15 gpm		 56 L/min
15 gpm		 80 L/min
21 gpm		 30～160 L/min
８～42 gpm
Motor power 7.5 kW 11 kW 17 kW 30 kW 37 kW
Overall size 1300×720×1150
32.7"×16.9"×21.9"		 4000×1200×1050
37.4"×20.5"×25.2"		 1500×1050×1480 2020×1050×1430
44.5"×24"×33.9"		 2020×1140×1560
41.3"×24.4"×		 2760×1335×1830
Weight 420 kg
924 lbs		 950 kg
2090 lbs		 800 kg
1760 lbs		 3500 kg
7700 lbs		 3800 kg
8360 lbs		 4200 kg
9240 lbs
