Open-throat Backup Tong Hydraulic Bucking Unit
inquiry form

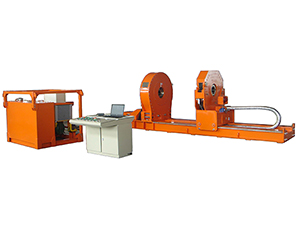

Open-throat Backup Tong Hydraulic Bucking Unit

NJ-BK hydraulic bucking unit is an important tool suitable for make-up, break-out and maintaining of the thread connections of drill tools, pipe strings and downhole equipment in petroleum exploration and geological prospecting. It is also used for the make-up operations for pipes with ordinary threaded connections. The gripping mark depth is less than 0.15mm. The floating type tong ensures precise make-up torque measuring and graph displaying. This device comes with automatic speed transmission during the make-up process. And a minimum rotation speed is lower than 2 r/min, suitable for make-up operation of large torque. Backup tong is optional in open-throat design. The central height is adjustable, making it applicable to makeup operations for special-shaped and eccentric workpieces.

Technical parameters

Model NJ180-35BK NJ273-40BK NJ340-50BK
Applicable pipe diameter Φ60～177.8
2⅜″～7″		 Φ73～273
2⅞″～103/4″		 Φ177.8～339.7
7″～13⅜″
Rated torque at high gear 18000 N·m
13270 ft-lbs		 20000 N·m
14750ft-lbs		 23000 N·m
16960 ft-lbs
Rated torque at low gear 35000 N·m
25810 ft-lbs		 40000 N·m
29500 ft-lbs		 50000 N·m
36870 ft-lbs
Rated speed at high gear 28 r/min 25 r/min 22 r/min
Rated speed at low gear 12 r/min 10 r/min 10 r/min
Open-throat size 220mm 330mm 400mm
Max. working pressure 16 MPa
Max. flow 30～160 L/min
８～42 gpm
Motor power 37kW
Overall size 2020×1050×1430mm
80"×41.3"×56.3"		 2020×1140×1560mm
80"×45"×61.4"		 2760×1335×1830mm
108.6"×52.5"×72"
Weight 3500 kg
7700 lbs		 3800 kg
8360 lbs		 4200 kg
9240 lbs
