NKY-C15Ex/C8 Touch Screen Anti-Explosion Torque Control System

  • NKY-C15Ex/C8 Touch Screen Anti-Explosion Torque Control System
  • NKY-C15Ex/C8 Touch Screen Anti-Explosion Torque Control System
  • NKY-C15Ex/C8 Touch Screen Anti-Explosion Torque Control System
inquiry form

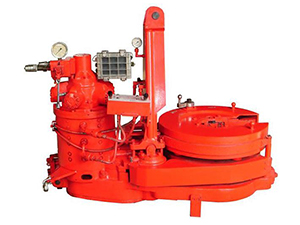

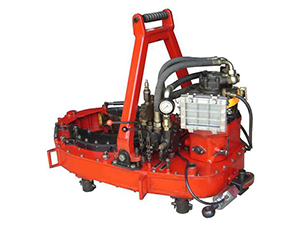

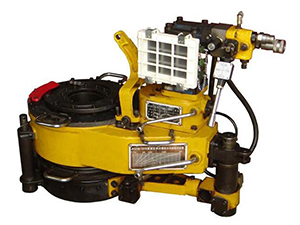

NKY-C15Ex/C8 torque control system is paired with hydraulic power tongs for real-time monitoring of make-up torque of tubular connections. This ensures that the makeup torque of pipe connections is controlled within the range recommended by APT standards. It prevents gluing and tube damage caused by over-torquing in making-up the connections so as to meet the strict standards and requirements of pipes downwell.

The torque control system consists of a touch LED display, power adapter, torque sensor, electromagnetic dump valve, etc. It features simple structure and low fault rate, suitable for anti-explosion applications.

Features

  • Flameproof type enclosure is rated to Ex d ib IIB T6 Gb, making this torque control system suitable for hazardous areas with flammable and explosive gases.
  • This product is made using stainless steel to improve performance.
  • Integrated touch LED display is used.
  • Good versality: this torque control system is compatible to manual tongs, tubing power tongs, casing power tongs and drill pipe power tongs.
  • Optimized structure offers extremely convenient maintenance.
  • Flexible sensor configuration for the measuring of make-up torque, with zero stability, high torque accuracy and strong anti-interference performance. Powered by a reliable power adapter, this torque controller is suitable for various applications, harsh environment and various corrosive applications.
  • The make-up parameters can be set according to your manufacturing specifications.
  • Displaying, controlling and recording of make-up parameters are available. The data can be recorded on a disk for future review.
  • Featuring with reliable hardware and software, complete function, easy operation, reliable running and convenient maintenance, this torque control system is applicable to harsh oilfield applications.

Technical Parameters

    1. Power requirements: 220V AC ±15%, 50 to 60Hz
    2. Power supply: 24V DC (on site)
    3. Max. power consumption: 120W
    4. Torque range: 150kN.m (adjustable based on the hydraulic power tongs)
    5. Hook load: 3 ~ 15T (optional based on the hydraulic power tongs)
    6. Measuring accuracy: ≤0.5％
    1. Control accuracy: ≤2.5％
    2. Working temperature: -15°C to +55°C
      -35°C to +65°C (low temperature)
    3. Working RH: 10% to 80% RH (no condensing)
    4. Overall size: touch screen 250×200×80mm
    5. Packing size 480×380×200mm
    6. Weight: 30kg
