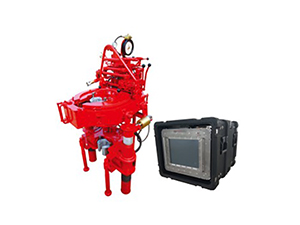

NKY- C15Ex Explosion-Proof Torque Control System

NKY- C15Ex Explosion-Proof Torque Control System
inquiry form

Features

  • Flameproof type enclosure is rated to Ex d ib IIB T6 Gb, making this torque control system compliant for hazardous areas with flammable and explosive gases.
  • Flexible sensor configuration is for the measuring of make-up torque, with zero stability, high torque accuracy and strong anti-interference performance. Powered by a reliable power adapter, this torque controller is suitable to various applications, harsh environment and various corrosive applications.
  • 12 bits high precision analog A/D conversion module ensures high sampling rate.
  • Featuring with reliable hardware and software, complete function, easy operation, reliable running and convenient maintenance, this torque control system is applicable to harsh oilfield locations.
  • The computer adopts an explosion-proof touch LED display, made of IP 65 stainless steel.
  • This controller is made by stainless steel for solid structure.
  • Optoelectronic isolators are used in the electrical input and output circuits.
  • The touch LED display adopts thickened 10mm tempered glass.
  • Automatic and manual control are optional.
  • Measuring unit is optional in N·m and ft·lbs.
  • 12 bits high precision analog A/D conversion module ensures high sampling rate.
  • The coupling of the pipe adopts 1" and 1¼"NPT threaded connection.

Technical Parameters

    1. Power supply: 24V DC
    2. Max. power consumption: 200W
    3. Torque range: 150kN.m (adjustable based on the hydraulic power tongs)
    4. Response time: output control: <0.5ms;
      hydraulic dump valve: 10-20ms
    5. Torque accuracy: ≤0.5%
    1. Working temperature: -15°C to +55°C
      -40°C to +80°C (low temperature)
    2. Control accuracy: ≤2.5%
    3. Protection: IP67
    4. Weight: 60kg
    5. Overall size: 610×480×430mm
